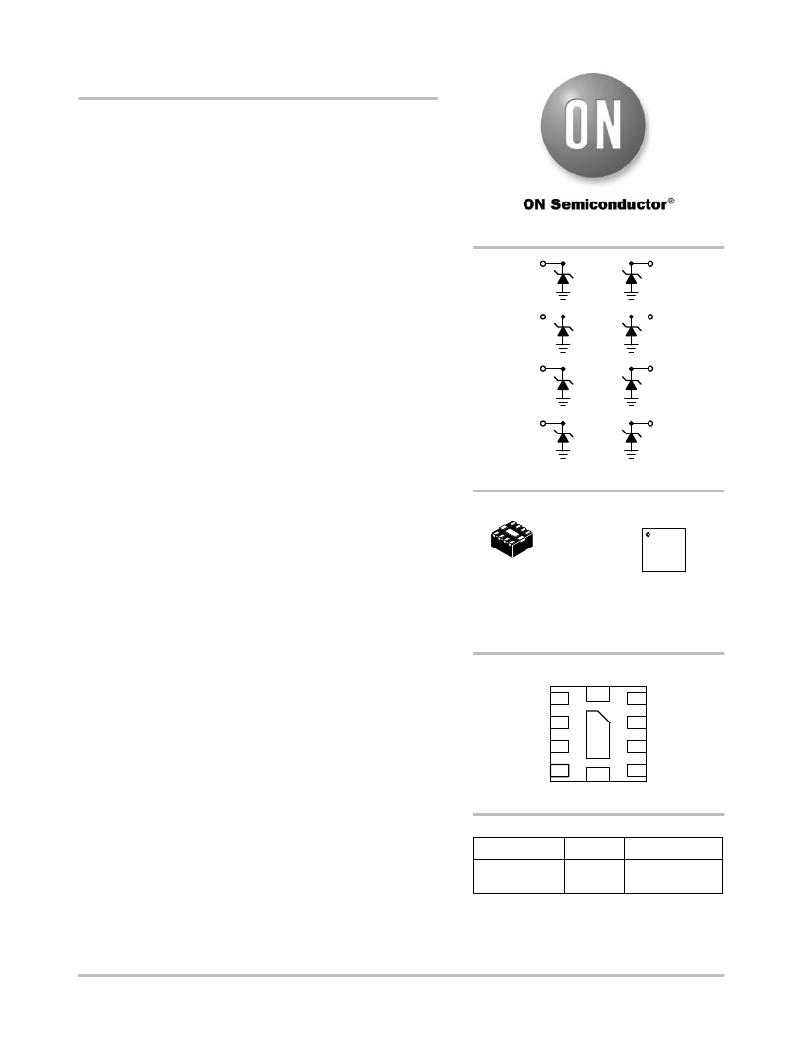

NUP8010MN
Low Capacitance Transient
Voltage Suppressor Array
This integrated transient voltage suppressor device (TVS) is
designed for applications requiring transient overvoltage protection. It
is intended for use in sensitive equipment such as computers, printers,
business machines, communication systems, medical equipment, and
http://onsemi.com
other applications. Its integrated design provides very effective and
reliable protection for eight separate lines using only one package.
These devices are ideal for situations where board space is at a
premium.
Features
? Low Capacitance
? Low Leakage Current < 1 m A @ 3 V
? ESD Ratings:
?
IEC61000-4-2, 8 kV (Contact)
? IEC61000-4-2, 15 kV (Air)
? Machine Model = Class C, 400 V
1
2
3
4
8
7
6
5
?
?
?
? Human Body Model = Class 3B, 8 kV
DFN Package, 1.6 x 1.6 mm
Moisture Sensitivity Level 1
This is a Pb-Free Device
(Top View)
MARKING
Benefits
? Provides Protection for ESD Industry Standards: IEC 61000, HBM
? Protects the Line Against Transient Voltage Conditions in Either
1
8
DFN8
CASE 506AK
DIAGRAM
1
5P M G
G
Direction
?
?
Minimize Power Consumption of the System
Minimize PCB Board Space
5P = Specific Device Code
M = Date Code
G = Pb-Free Package
(Note: Microdot may be in either location)
Applications
? ESD Protection for Data Lines
? Wireless Phones
? Handheld Products
? Notebook Computers
? LCD Displays
PIN CONNECTIONS
8 1
7 2
6 3
5
4
(Bottom View)
ORDERING INFORMATION
Device
NUP8010MNT1G
Package
DFN8
Shipping
3000 / Tape & Reel
(Pb-Free)
?For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
? Semiconductor Components Industries, LLC, 2007
December, 2007 - Rev. 2
1
Publication Order Number:
NUP8010MN/D
